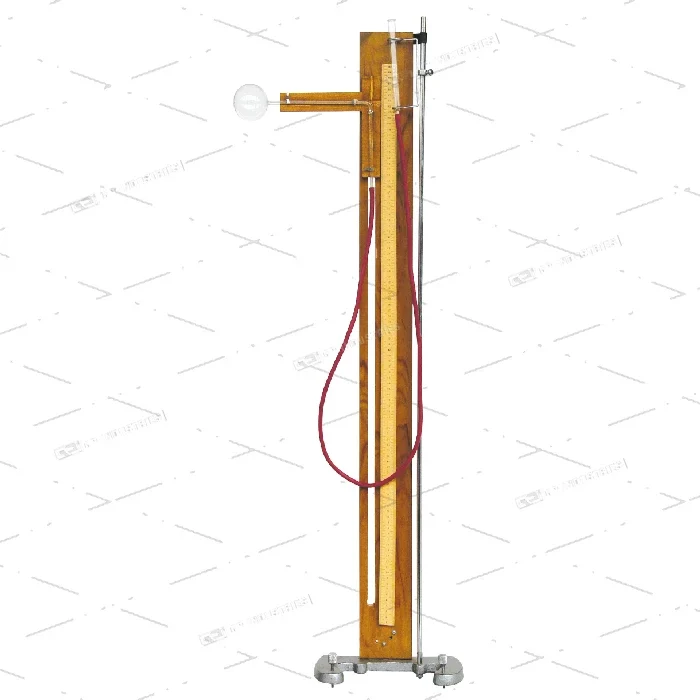

BOYLE’S LAW APPARATUS
SKU: GP-265.1
Having 220mm long x 8mm inside diameter glass tubes one is closed at the top and other one is opened. The lower ends of tubes are drawn out and connected together by 1.5m of rubber pressure tubing 10mm outside diameter x 5mm inside diameter.
Having 220mm long x 8mm inside diameter glass tubes one is closed at the top and other one is opened. The lower ends of tubes are drawn out and connected together by 1.5m of rubber pressure tubing 10mm outside diameter x 5mm inside diameter.
Both the tubes are mounted on the brackets which can be locked in any portion on the metal supporting rods. Stand is made of approximately 1.06m in height and carries a graduated scale 0 to100cm with mm divisions in centre and figured every 2cm up either side on heavy metal box.
Mercury required for this apparatus is approx. 30cm³. Supplied without mercury.
Full Specifications:
